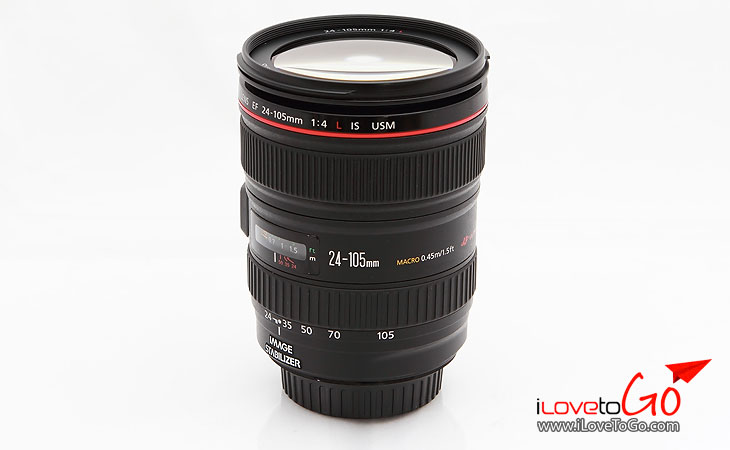

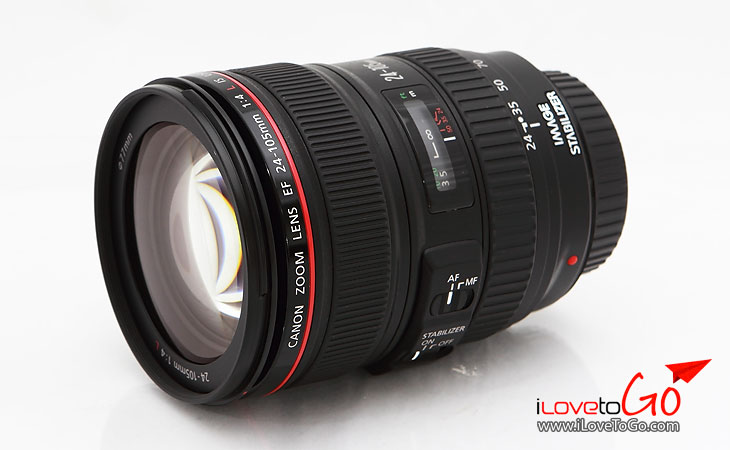

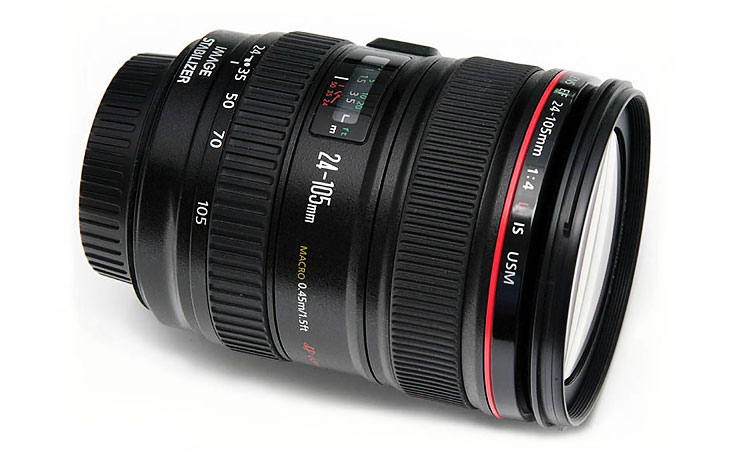

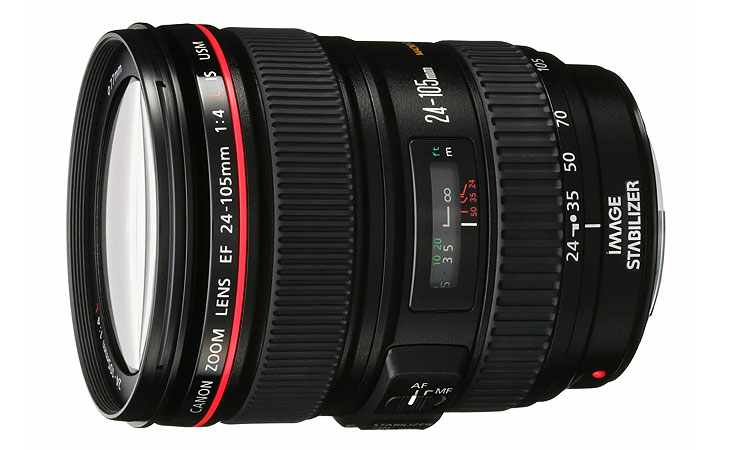

Overview This easy-to-use standard zoom lens can cover a large zoom area ranging from 24mm wide-angle to 105mm portrait-length telephoto, and its Image Stabilizer Technology steadies camera shake up to three stops. Constructed with one Super-UD glass element and three aspherical lenses, this lens minimizes chromatic aberration and distortion. The result is excellent picture quality, even at wide apertures. Canon ring-type USM gives silent but quick AF, along with full-time manual focus. Moreover, with dust- and moisture-resistant construction, this is a durable yet sophisticated lens that meets the demands of advanced amateur photographers and professional photographers alike.
Specification:
- Focal Length and Maximum Aperture : 24-105mm f/4
- Lens Construction : 18 elements in 13 groups
- Diagonal Angle of View : 84 - 23 20 (with full-frame camera)
- Focus Adjustment : Inner focusing system with focusing cam
- Closest Focusing Distance : 1.48 ft./0.45m
- Zoom System : 5-group helical zoom (front group moves: 32.5mm)
- Filter Size : 77mm
- Max. Diameter x Length : 3.3 in. x 4.2 in., 23.6 oz. / 83.5mm x 107mm
- Weight : 670g (lens only)
| Specification |
| ระยะโฟกัส (Focal Length) |
24-105mm |
| รูรับแสงกว้างที่สุด (Maximum Aperture) |
4 |
| รูรับแสงแคบที่สุด (Minimum Aperture) |
22 |
| องค์ประกอบเลนส์ (Lens Construction) |
18 elements / 13 groups |
| ระยะโฟกัสต่ำสุด (Minimum Focus Distance) |
0.45m |
| Maximum Reproduction Ratio |
0.23 (at 105mm) |
| จำนวนของม่านรับแสง (Number of Diaphragm Blades) |
8 |
| มุมของภาพ (Picture Angle) |
|
| ระบบช่วยโฟกัส (Focus Adjustment) |
Ring USM ¹ |
| ระบบป้องกันการสั่น (Image Stabilizer) |
Yes |
| ขนาดฟิลเตอร์ (Filter Attachment Size) |
77mm. |
| เลนส์ฮูด (Hood) |
EW-83H |
| อุปกรณ์ในกล่อง (Included Accessories) |
|
| ขนาด (Dimensions) |
83.5mm x 107mm |
| น้ำหนัก (Weight) |
670g |
