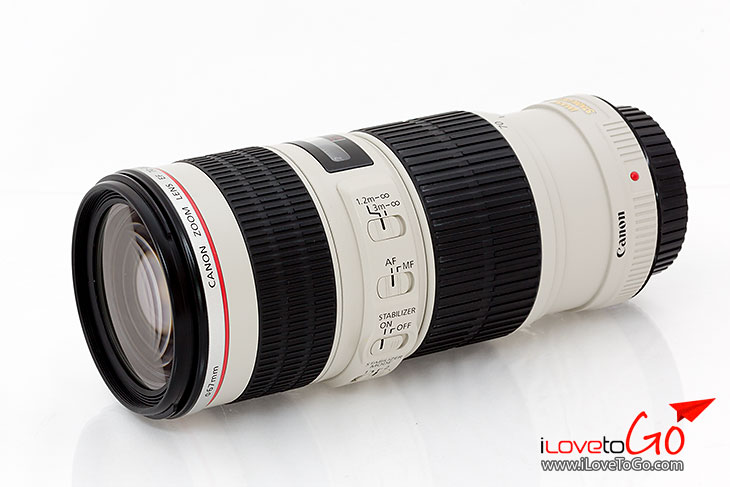

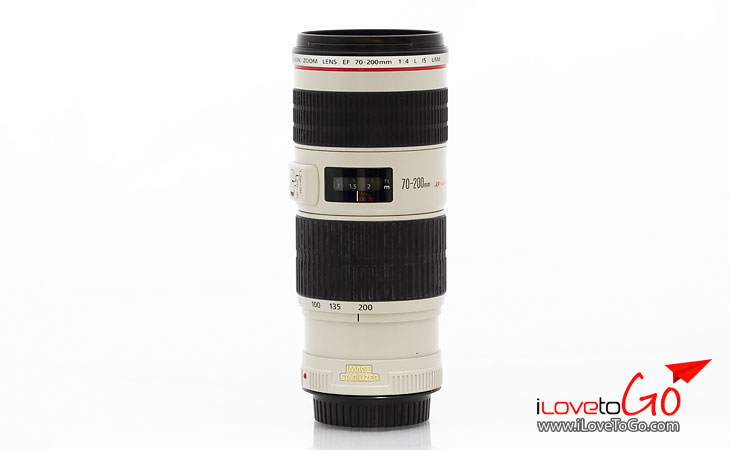

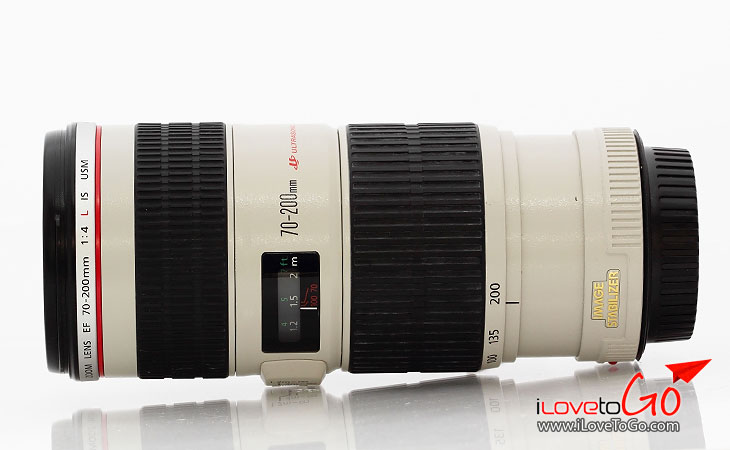

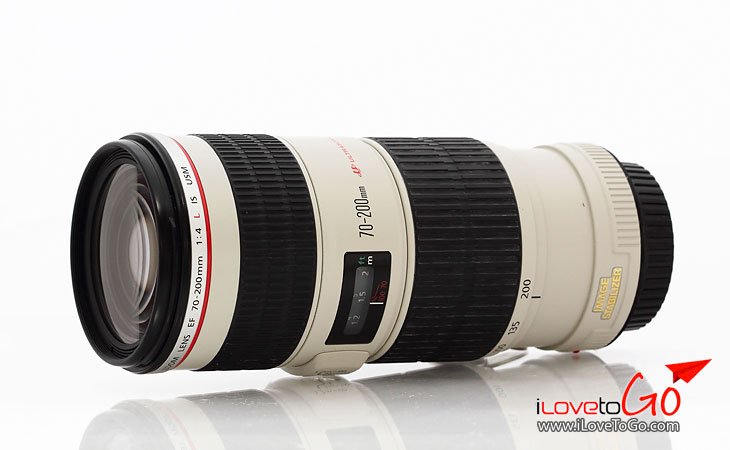

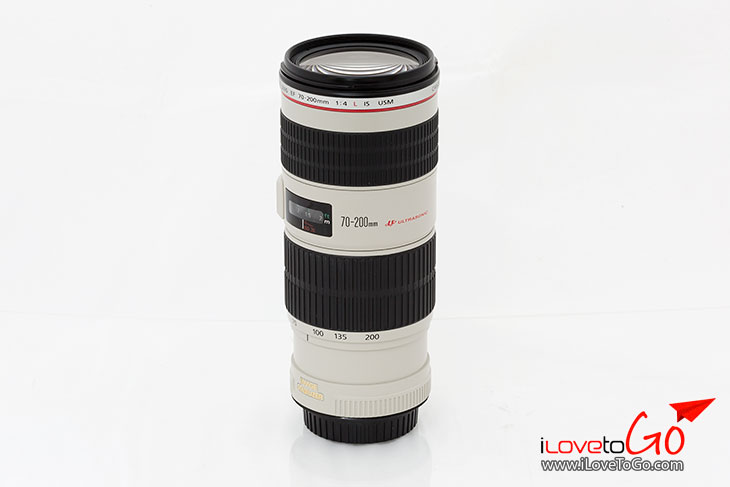

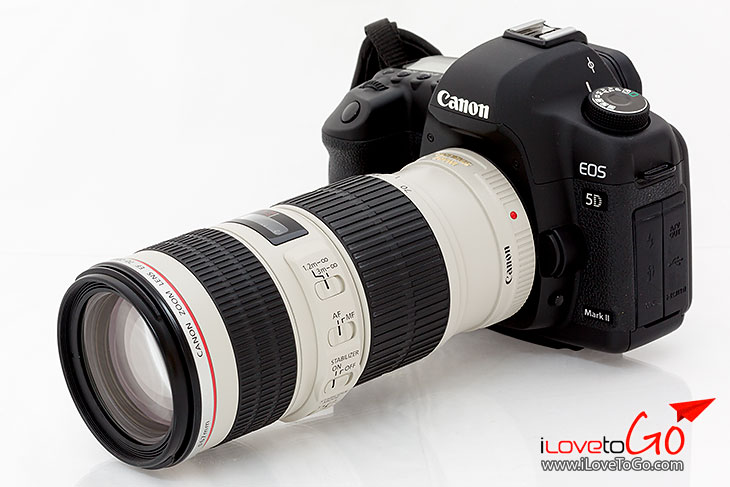

High-performance, L-series telephoto zoom lens combining light weight and compactness with an f/4 maximum aperture. Inner focusing and the ring USM enable quick and quiet autofocusing. Also, a circular polarizing filter can be attached and used without difficulty because the front lens element does not rotate during focusing. The tripod collar (sold separately) is the same one used with the EF 300mm f/4L USM.
- Focal Length and Max. Aperture: 70-200mm 1:4.0
- Filter Diameter: 67mm
- Magnification with Extension Tube EF12: 0.23x - 0.06x
- Magnification with Extension Tube EF25: 0.39x - 0.13x
- Diagonal Angle of View: 34? - 12? (43.2mm)
- Horizontal Angle of View: 29? - 10? (36mm)
- Lens construction: 16 elements in 13 groups
- Minimum aperture: f/32
- No. of aperture blades: 8
- Closest focusing distance (m): 1.2m
- Focus drive: Ultrasonic
- Dimensions: 76mm dia. x 172mm
- Weight: 705g
| Specification |
| ระยะโฟกัส (Focal Length) |
70-200mm |
| รูรับแสงกว้างที่สุด (Maximum Aperture) |
4 |
| รูรับแสงแคบที่สุด (Minimum Aperture) |
32 |
| องค์ประกอบเลนส์ (Lens Construction) |
16 elements / 13 groups |
| ระยะโฟกัสต่ำสุด (Minimum Focus Distance) |
1.2m |
| Maximum Reproduction Ratio |
0.21X (at 200mm) |
| จำนวนของม่านรับแสง (Number of Diaphragm Blades) |
8 |
| มุมของภาพ (Picture Angle) |
29° - 10° |
| ระบบช่วยโฟกัส (Focus Adjustment) |
USM¹ |
| ระบบป้องกันการสั่น (Image Stabilizer) |
Yes |
| ขนาดฟิลเตอร์ (Filter Attachment Size) |
67mm. |
| เลนส์ฮูด (Hood) |
ET-74 |
| อุปกรณ์ในกล่อง (Included Accessories) |
|
| ขนาด (Dimensions) |
76mm x 172mm |
| น้ำหนัก (Weight) |
705g |
