Features
- Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
- 1000′ line-of-sight, uncompressed transmission with a low 40 ms latency
- AES-128 encryption to prevent video leakage
- Smart channel selection
- Supports UVC pull streaming

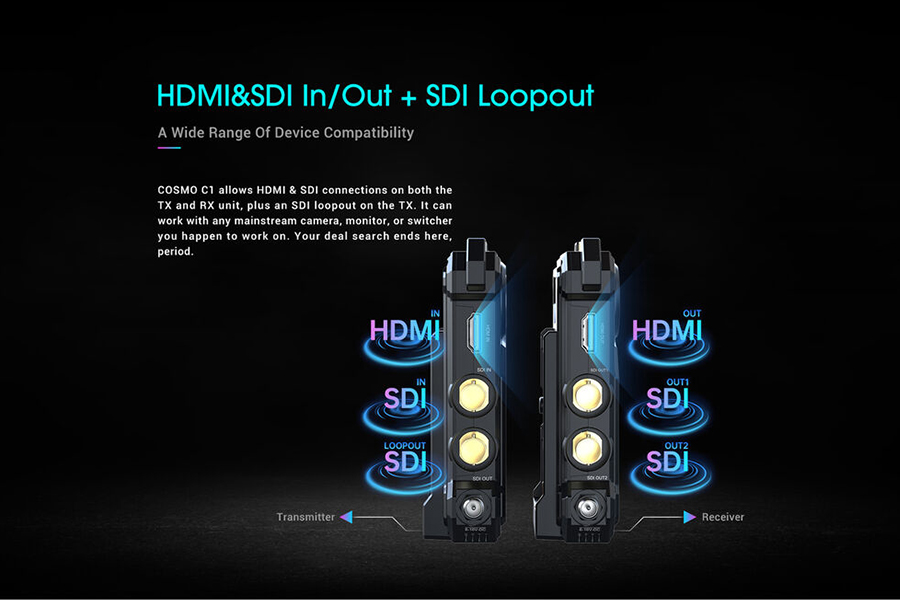

- SDI loop-through output on transmitter
- 5 GHz frequency band

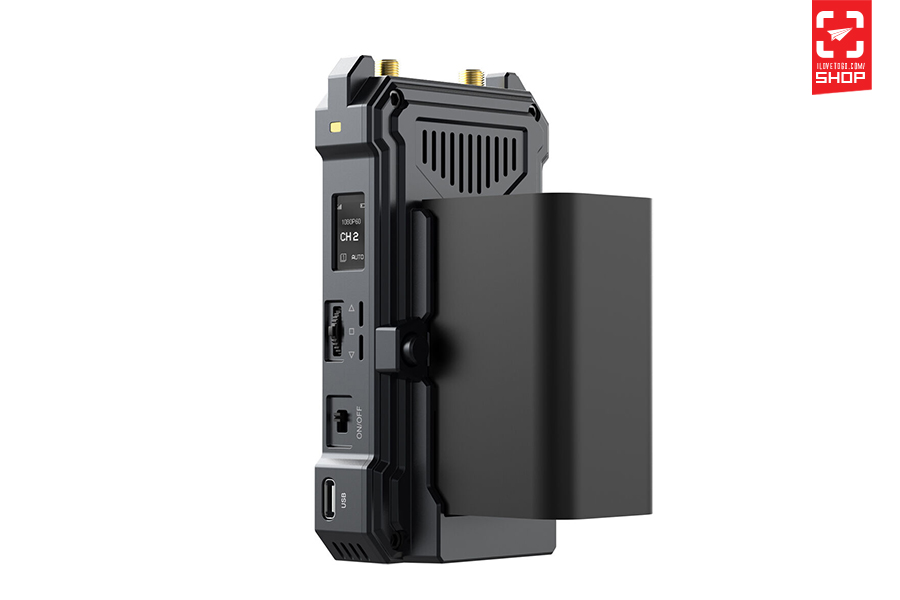

- OLED screen
- USB Type-C power input option

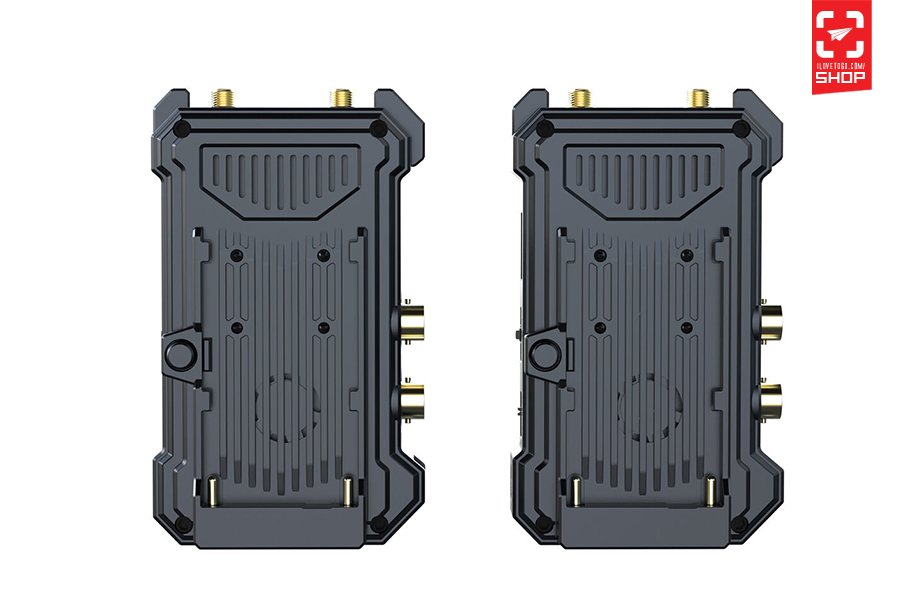

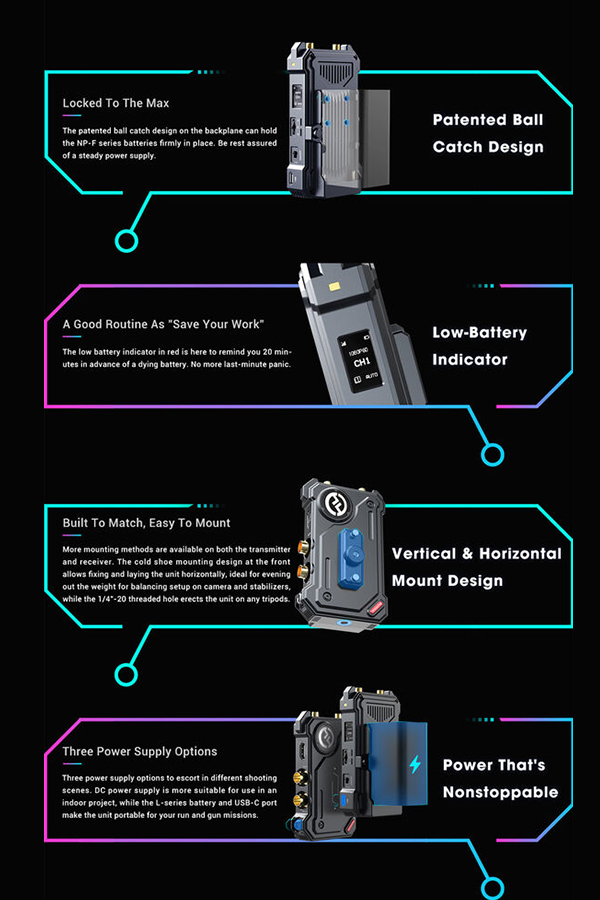

- L-series battery plates on back of each unit
- Power with included DC adapter or with optional USB adapter

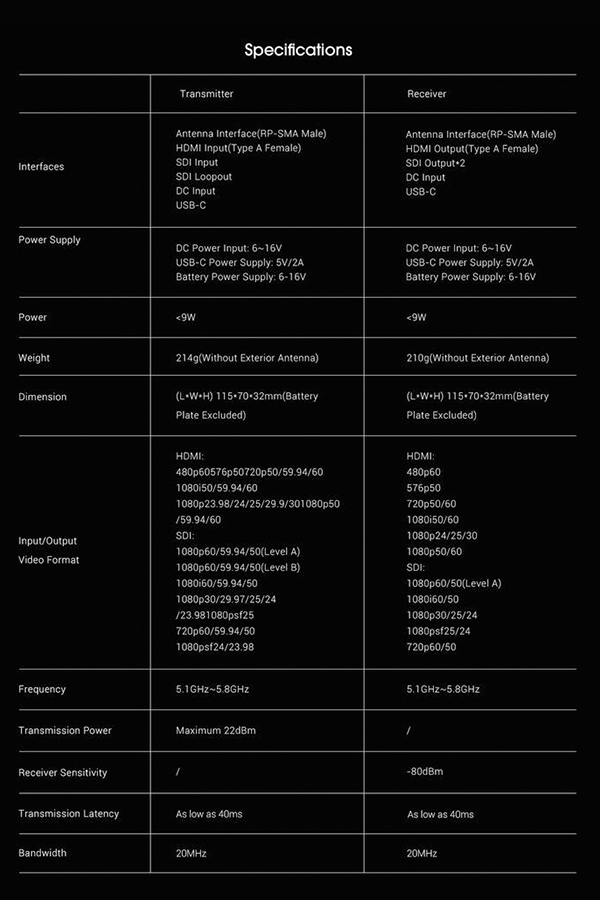

Specifications

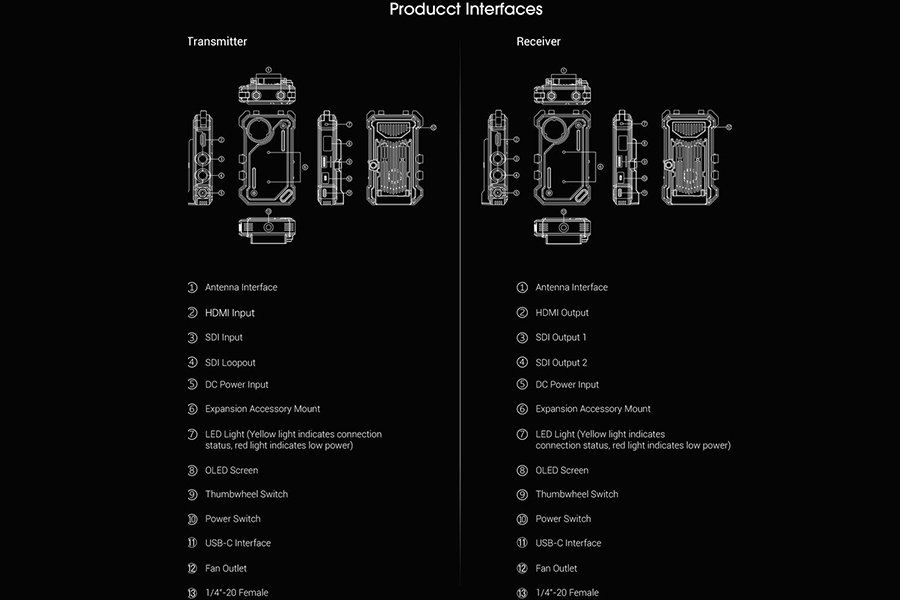

- Antenna Ports: Transmitter/Receiver: 2 x RP-SMA Male

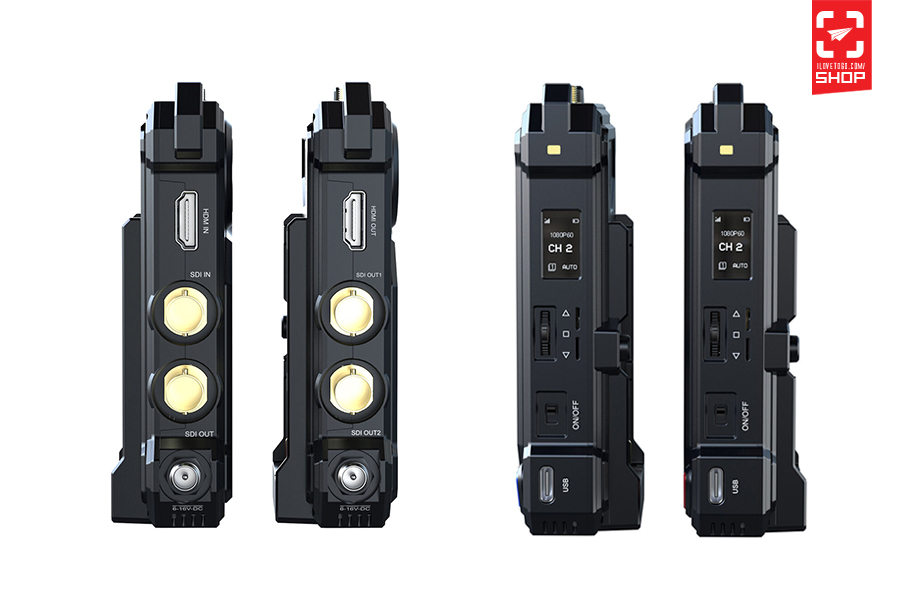

- Video:

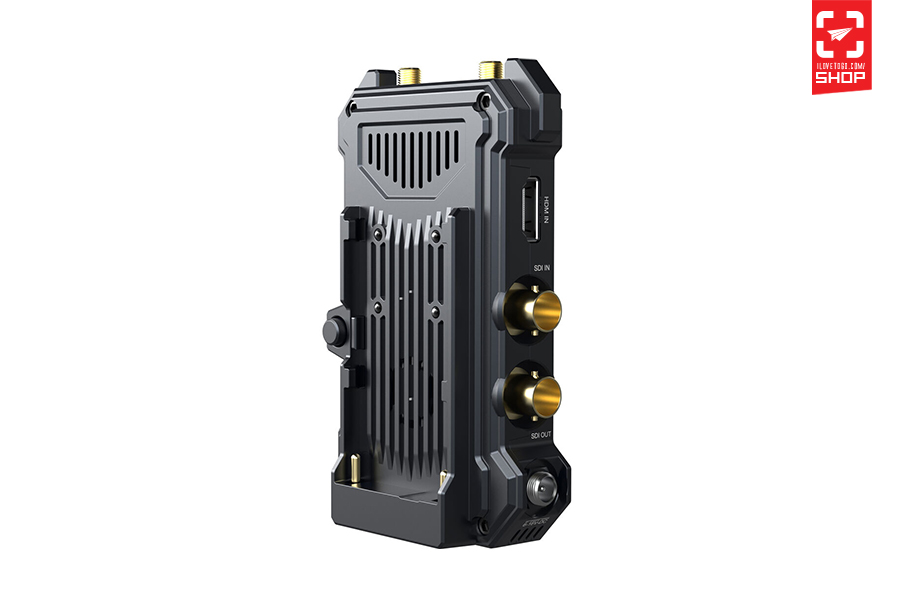

- Transmitter: 1 x BNC (3G-SDI) Input
- Transmitter: 1 x HDMI Type A Input
- Transmitter: 1 x BNC (3G-SDI) Loop Output
- Receiver: 2 x BNC (3G-SDI) Output
- Receiver: 1 x HDMI Type A Output
- HDCP Support: Not Specified by Manufacturer
- Embedded Audio HDMI/SDI: 2-Channel
- Audio: None
- Power Transmitter/Receiver: 1 x USB Type-C (2 A / 5 VDC) Input
- Other I/O Transmitter/Receiver: 1 x USB 3.1 / USB 3.2 Gen 1 (USB Type-C) Input
- Encryption: 128-Bit AES
- Wireless Range: 304.8 m
- Channel Bandwidth: 20 MHz
- Frequency Range US: 5.1 to 5.8 GHz
- Latency: 40 ms
- RF Power: 22 dBm
- RF Sensitivity: -80 dBm
- Wi-Fi: Yes
- Video Format: HDMI
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 480p: 60
- SDI:
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- Audio Format: Not Specified by Manufacturer
- Timecode Support: Yes
- DC Input Power: 6 to 16 VDC
- Battery Type Transmitter/Receiver: 1 x L-Series
- Power Consumption Transmitter/Receiver: 9 W
- Mounting: 1 x Cold Shoe
- IP Rating: None
- Dimensions Transmitter/Receiver: 115 x 70 x 32 mm, Excluding Battery Plate
- Weight Transmitter: 214 g, Excluding Antenna // Receiver: 210 g, Excluding Antenna
