Features
- Superior broadcast sound quality
- High Sensitivity
- Super-cardioid polar pattern
- Designed to withstand adverse environmental conditions
- 50% less self-noise than the majority of shotgun microphones
- Extremely low handling noise
- High level of immunity to radio frequency interference
- True Condenser (external RF biased)

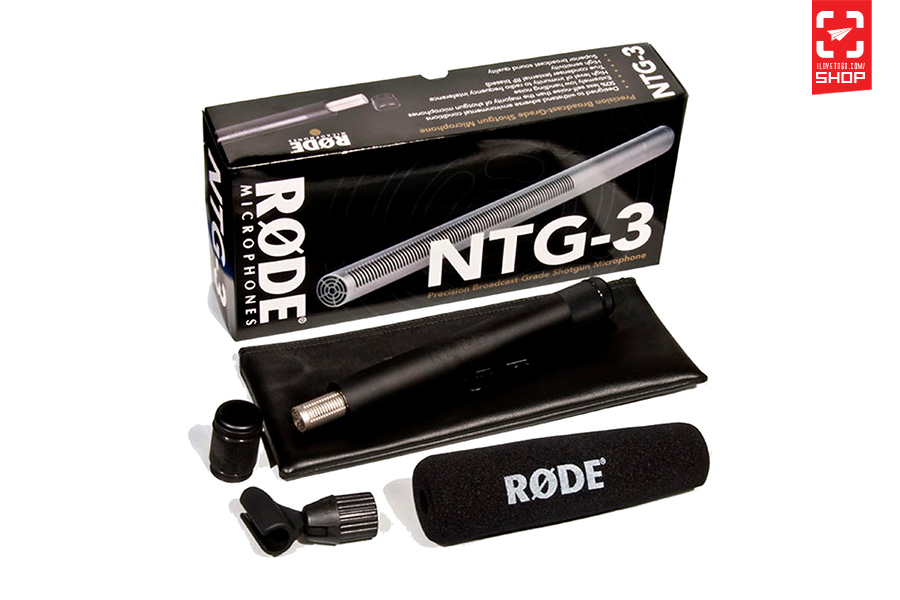

- Includes durable aluminium storage cylinder for transport, pop filter, mic clip and large zip pouch
- Designed for professional use on film, television, ENG & wherever high resolution broadcast audio is required
Specifications
-
Form Factor : Stand/Boom Mount
-
Sound Field : Mono
-
Operating Principle : Line Gradient
-
Capsule : Condenser
-
Diaphragm : 12.70 mm
-
Polar Pattern : Supercardioid
-
Orientation : End Address
-
Circuitry : Solid-State
-
Pad : None
-
High-Pass Filter : None
-
Tone Adjustment : None
-
Indicators : None
-
On-Board Controls : None
-
Windscreen : Foam (Included)
-
Frequency Range : 40 Hz to 20 kHz
-
Maximum SPL : 130 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)
-
Off-Axis Rejection : 8 dB at 60° // 18 dB at 120° // 17 dB at 180°
-
Impedance : 25 Ohms
-
Sensitivity : -30 dBV/Pa at 1 kHz
-
Output Level : 8.2 mV (Max)
-
Dynamic Range : 117 dB
-
Signal-to-Noise Ratio : 81 dB A-Weighted
-
Equivalent Noise Level : 13 dB A-Weighted
-
Output Connectors (Analog) : 1 x XLR 3-Pin
-
Power Operating Voltage : 48 V ± 4 V
-
Operating Current Consumption : 5 mA
-
Mounting : 3/8"-16 Female, 5/8"-27 Female, Mic Clip (with Included Hardware)
-
Construction Material : Brass
-
Dimensions : ø: 19 x L: 255 mm
-
Weight : 163 g (Microphone)
