Features
- Superior broadcast sound quality
- High Sensitivity
- Super-cardioid polar pattern
- Highly directional polar response
- Natural sounding audio both on and off-axis
- Designed to withstand adverse environmental conditions
- Extremely low handling noise
- High level of immunity to radio frequency interference
- True Condenser (external RF biased)

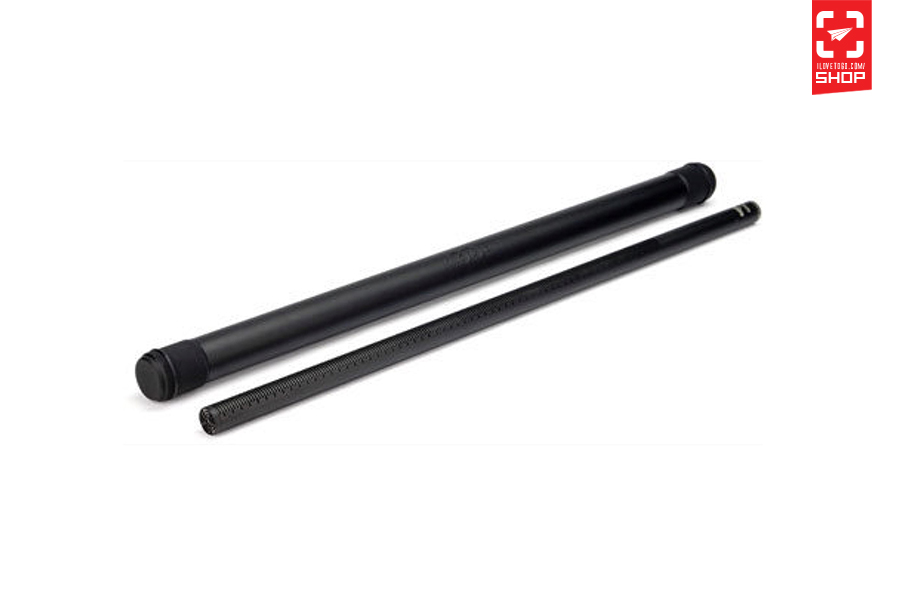

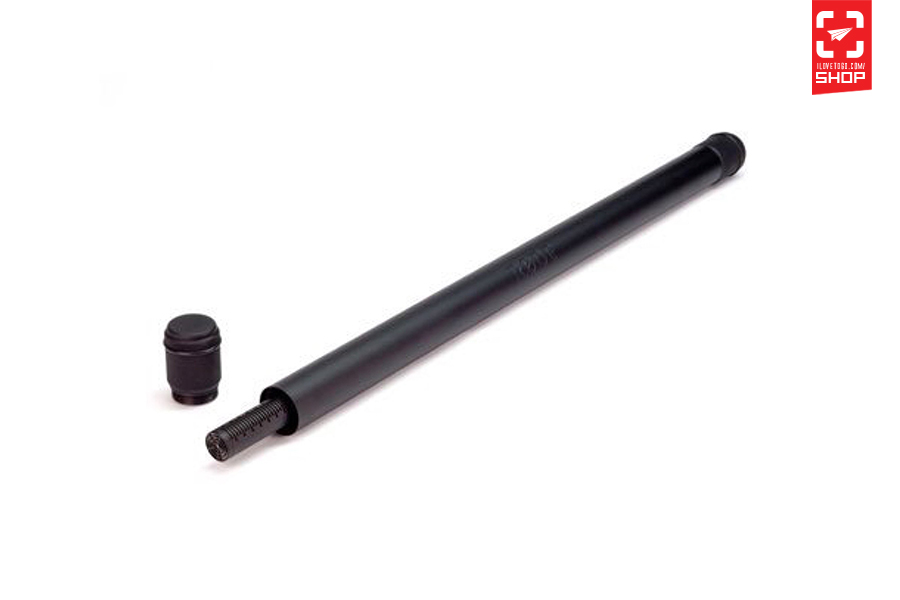

- Includes weatherproof aluminium cylinder for transport, SM8 shock mount and wind shield
Specifications
-
Form Factor : Stand/Boom Mount
-
Sound FieldMono
-
Operating PrincipleLine Gradient
-
CapsuleCondenser
-
Diaphragm12.70 mm
-
Polar PatternSupercardioid
-
OrientationEnd Address
-
CircuitrySolid-State
-
PadNone
-
High-Pass FilterNone
-
Tone AdjustmentNone
-
IndicatorsNone
-
On-Board ControlsNone
-
WindscreenFoam (Included)
-
Performance Frequency Range40 Hz to 20 kHz
-
Maximum SPL124 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)
-
Off-Axis Rejection16 dB at 60° // 24 dB at 120° // >20 dB at 180°
-
Impedance25 Ohms
-
Sensitivity -20 dBV/Pa at 1 kHz
-
Output Level8.2 dBu (Max)
-
Dynamic Range116 dB
-
Signal-to-Noise Ratio 81 dB A-Weighted
-
Equivalent Noise Level8 dB A-Weighted
-
Output Connectors (Analog)1 x XLR 3-Pin Male (on Mic)
-
Wireless ConnectivityNone
-
Digital Signal ProcessingNone
-
Power Operating Voltage44 to 52 V (Phantom Power)
-
Operating Current Consumption2.5 mA
-
-Mounting3/8"-16 Female, 5/8"-27 Female, Shockmount (with Included Hardware)
-Dimensions ø: 1.9 x L: 55.9 cm (Microphone)
-Weight345 g (Microphone)
