คุณสมบัติ
- ใช้คลื่น 2.4GHz รองรับการใช้งานระยะ 100 เมตร
- มีหน้าจอ OLED แสดงสถานะชัดเจน
- พัฒนาตัวรับเสียงมีคุณภาพดีขึ้นกว่าเดิม
- แบตเตอรี่ใช้งานยาวนาน สูงสุด 8 ชั่วโมง/ชาร์จ 1 ครั้ง
- เพิ่มช่องหูฟังสำหรับการมอนิเตอร์เสียง
- สามารถปรับเสียง Output ได้ทั้งแบบ Mono และ Stereo

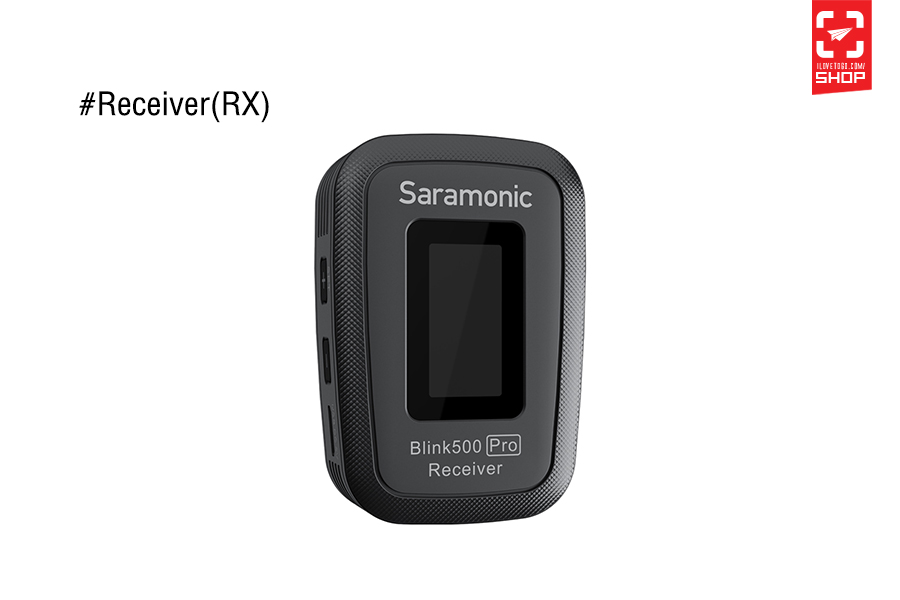

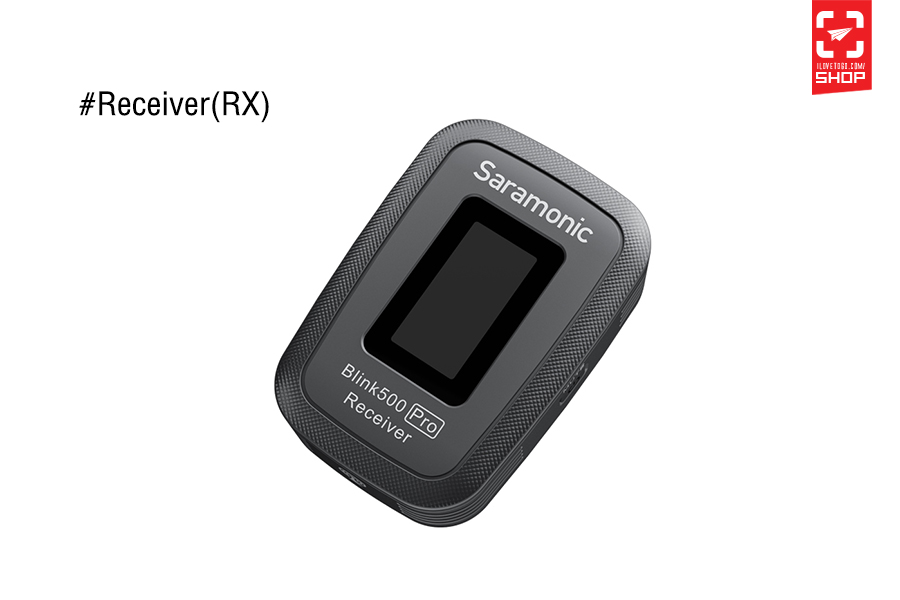

Blink500 Pro RX
-
Transmission Type : 2.4GHz Digital Frequency
-
Modulation : GFSK
-
Operating Range : Up to 328′(100m)
-
Audio Output Connector : 3.5mm jack
-
Audio Output level : –60 dBV to -20dBV
-
Power Requirements : Built-in Li-ion Battery or Micro USB DC 5V or Charging Contact
-
Headphone jack : 3.5mm
-
Built-In Battery Life : Approx.8 hours
-
Antenna : PIFA Antenna
-
Weight : Approx. 32g(1.13oz)
-
Dimensions : 56×38×29.4mm
-
Operating Temperature : 0℃ to 50℃
-
Storage Temperature : -20℃ to +55℃

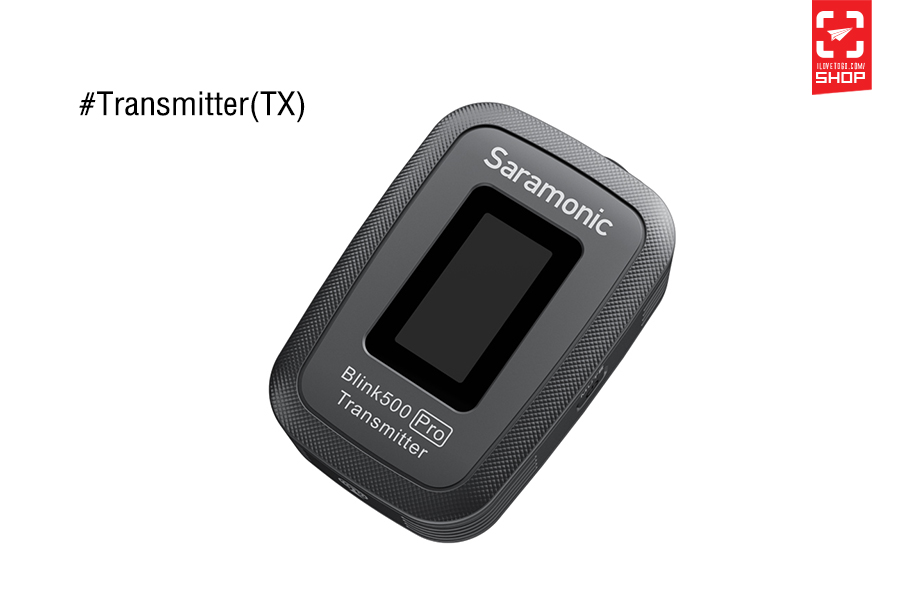

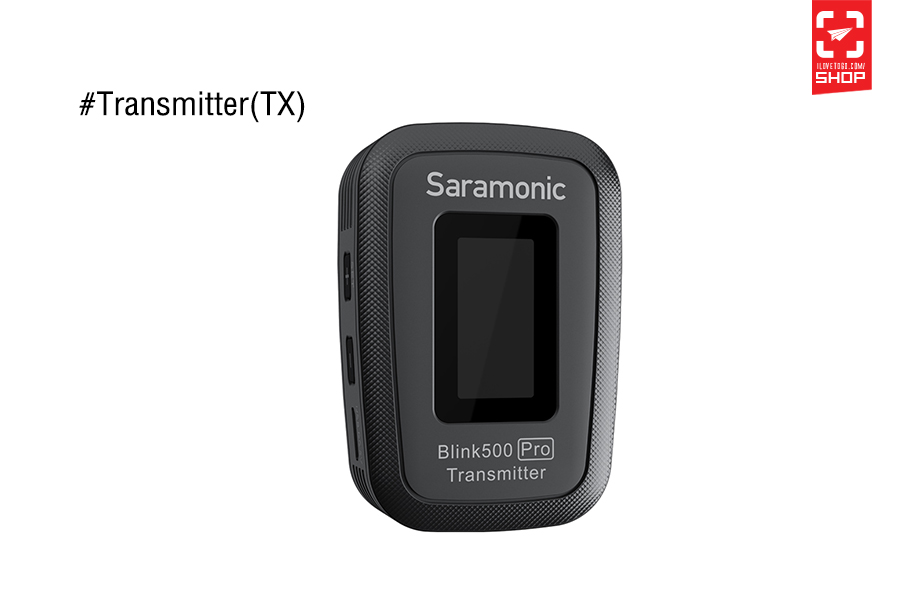

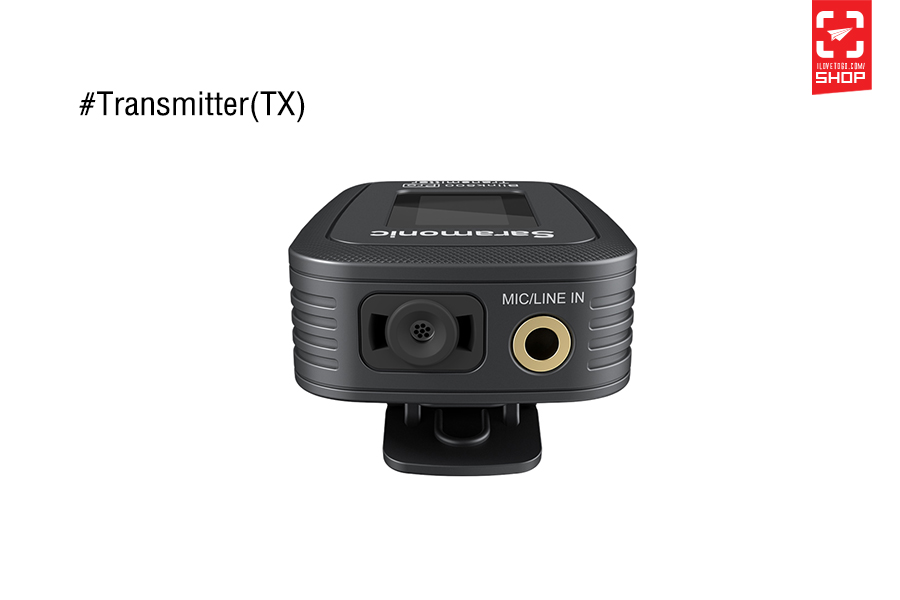

Blink500 Pro TX
-
Transmission Type : 2.4GHz Digital Frequency
-
Modulation : GFSK
-
Operating Range : Up to 328′(100m)
-
RF Output Power : 10mW
-
Polar Pattern : Omnidirectional
-
Frequency Response : 50Hz-18KHz
-
Maximum SPL : Built-in Microphone:120dB SPL
-
Lavalier Microphone : 110dB SPL
-
Sensitivity : Built-in Microphone: -39dB
-
Lavalier Microphone : -39dB
-
SNR : >78dB
-
Reference audio input level : -30~42dBv MIC input,0 dB attenuation
-
Power Requirements : Built-in Li-ion Battery or Micro USB DC 5V or Charging Contact
-
Built-in Battery Life : Approx.8 hours
-
Antenna : PIFA Antenna
-
Audio Inputs : 3.5mm TRS Lavalier Mic/Line /// in Input or Built – in Microphone
-
Weight : Approx. 32g(1.13oz)
-
Dimensions : 56.5×38×26.1mm
-
Operating Temperature : 0℃ to 50℃
-
Storage Temperature : -20℃ to +55℃

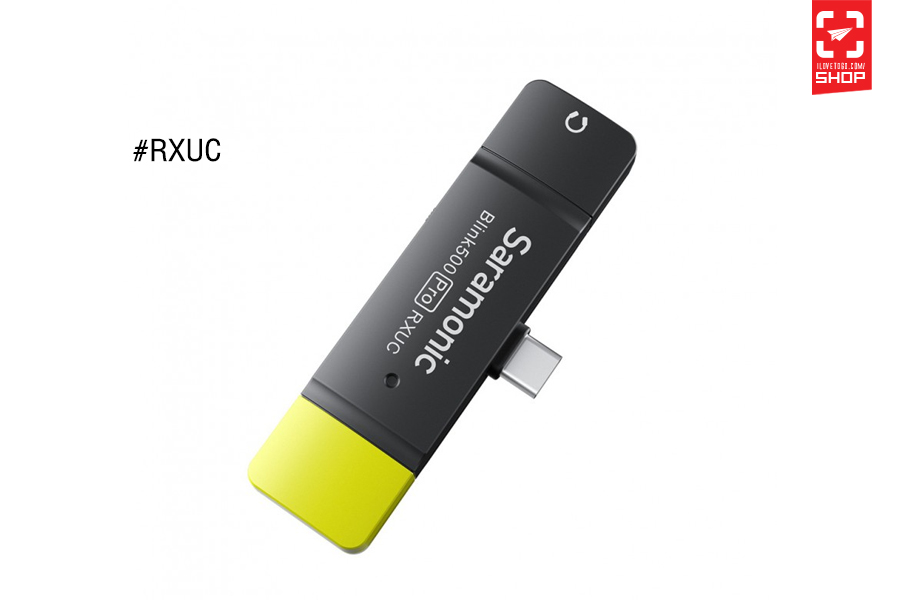

Blink500 Pro RXUC
-
Form Factor: Plug-In
-
Mounting Options: Plug-In
-
Antenna: 1 x Internal
-
Number of Audio: Channels 2
-
Audio I/O: 1 x 3.5 mm TRS Female Unbalanced Headphone Output
-
Phantom Power Protection: None
-
Network I/O: None
-
Word Clock I/O: None
-
USB/Lightning Connectivity: 1 x USB Type-C (Audio, Bus Power)
-
Power Requirements: Bus Power (USB)
-
Display & Indicators: 1 x LED
-
Operating Temperature: 0 to 50°C
-
Storage Temperature: -20 to 55°C
-
Dimensions: 8.1 x 1.3 x 3 cm
-
Weight: 17 g
