In the Box
- BOYA BY-WM3U หรือ BY-WM3D

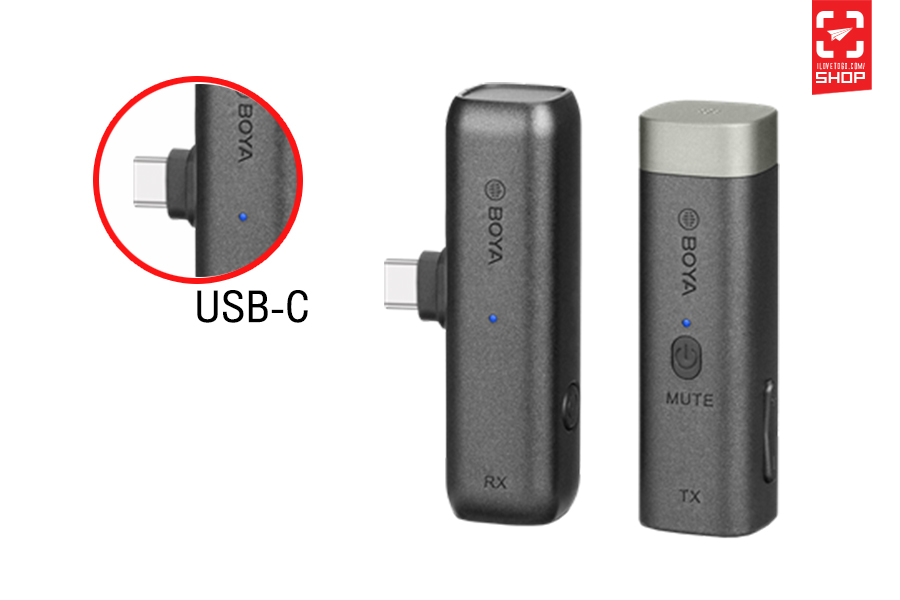

- Compact Plug-In Receiver

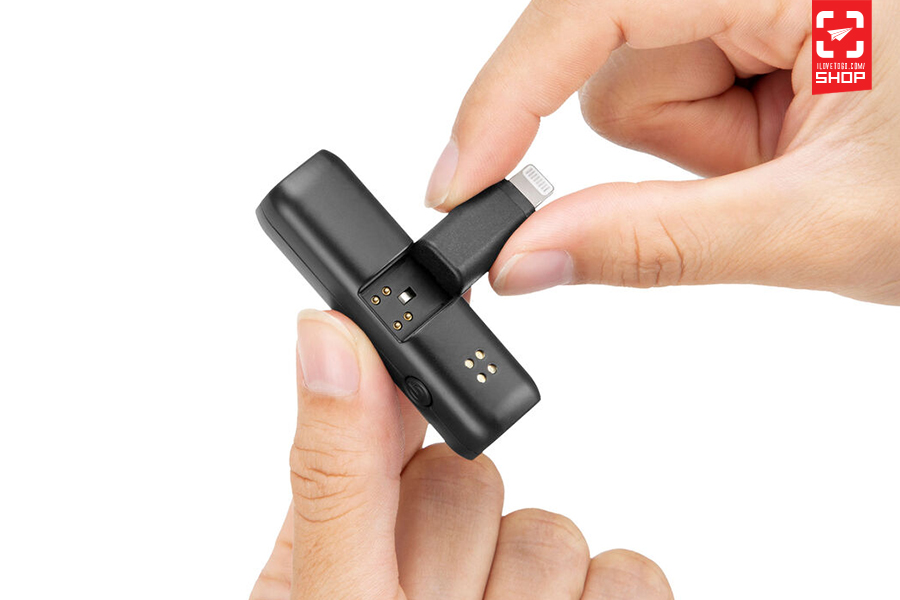

- USB Type-C Adapter for Android Devices
- 3.5mm TRS Adapter for Cameras
- 3.5mm TRRS Adapter for Smartphones
- Foam Windshield
- Furry Windshield
- USB Charging Cable

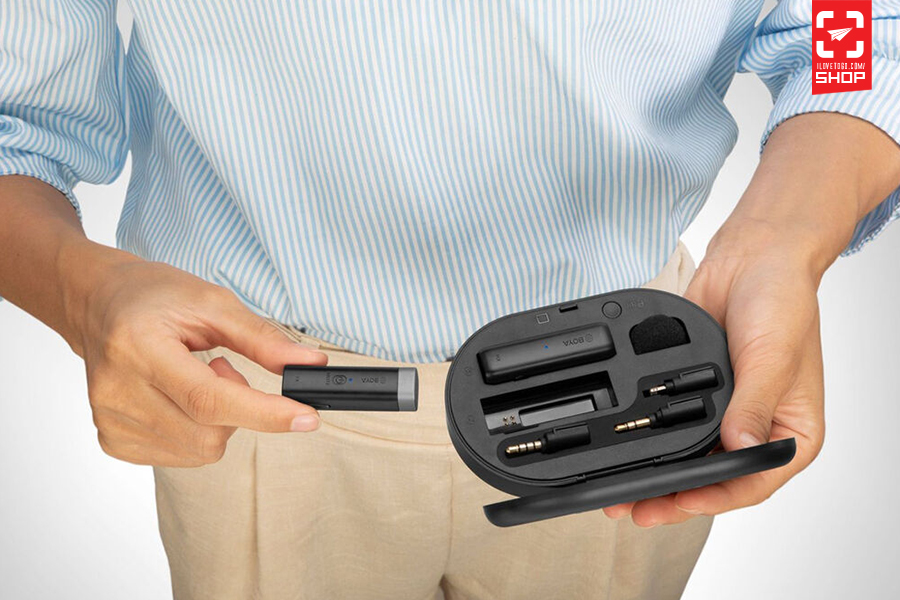

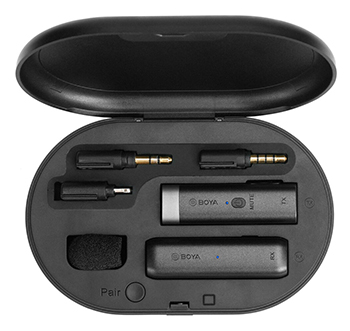

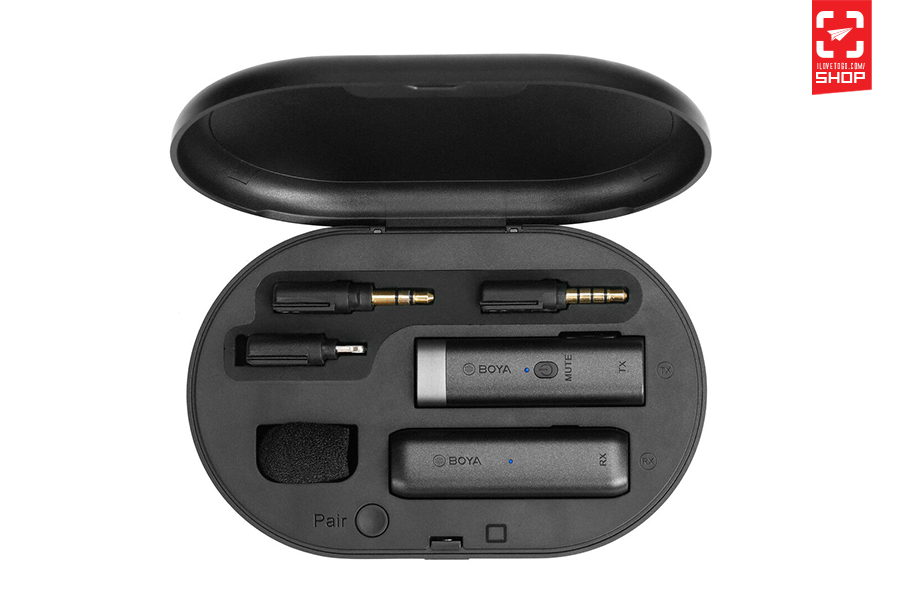

- Charging Case
Features
- มีหัวแปลง สามารถเปลี่ยนใช้งานได้กับทุกอุปกรณ์ สมาร์ทโฟน กล้อง และ PC

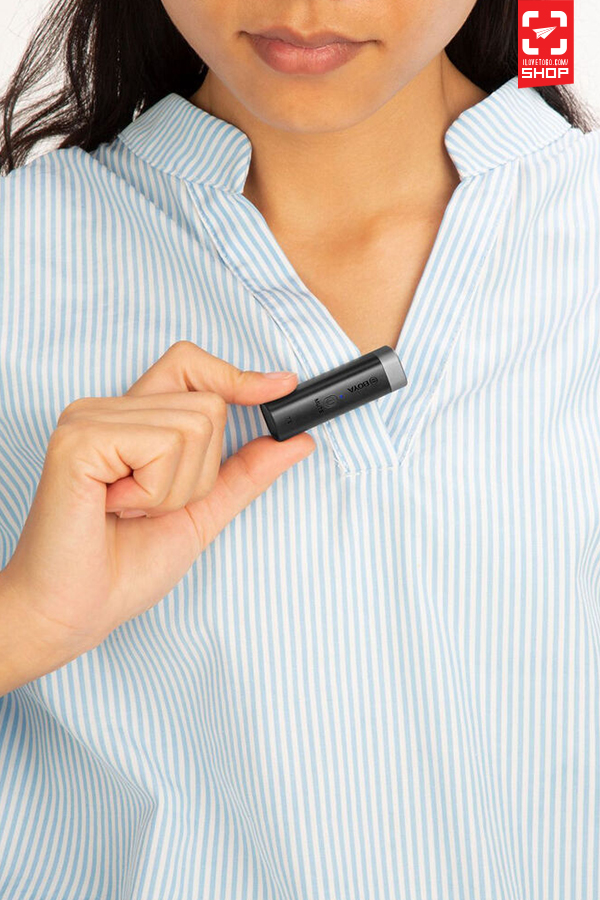

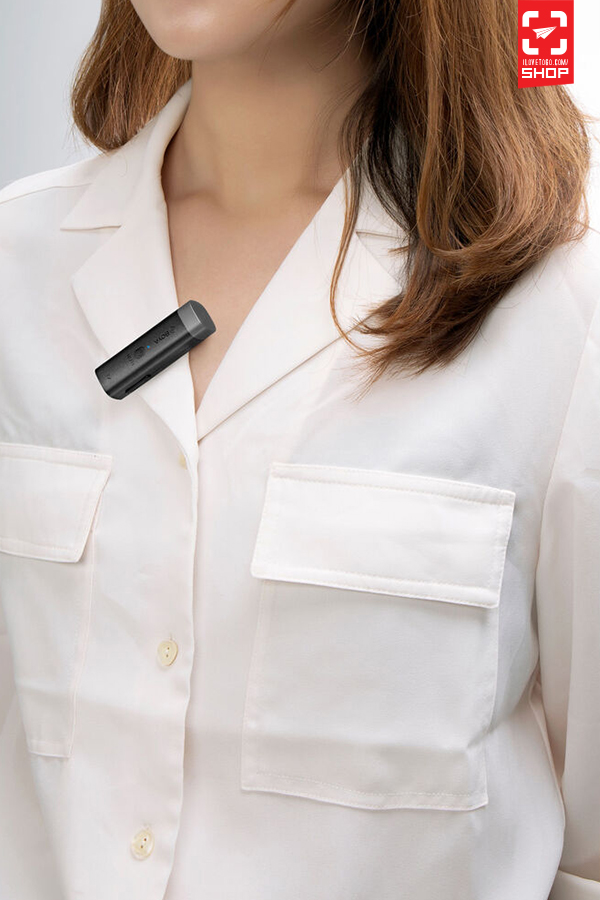

- ตัวส่งสัญญาณเป็นไมค์แบบ Build-in ในตัว สามารถใช้งานแบบหนีบปกเสื้อ หรือถือสัมภาษณ์
- ส่งสัญญาณได้ไกลถึง 20 เมตร (ไม่มีสิ่งกีดขวาง)
- กล่องชาร์จมีแบตเตอร์รี่ในตัว ขนาด 1,000 mAh สามารถชาร์จได้ทั้งตัวส่ง-ตัวรับ ในเวลาเดียวกัน (ใช้เวลา 2 ชั่วโมง /เต็ม)
Specifications
-
Wireless Transmission : Digital 2.4 GHz
-
Included Transmitters : 1 x Clip-On with Microphone
-
Diversity : Non-Diversity
-
RF Channel Scanning : Auto-Scan
-
Max Operating Range : 20 m (Line of Sight)
-
Max Systems per Setup : 20
-
Sample Rate/Resolution : 48 kHz / 16-Bit
-
Encryption : None
-
Receiver Form Factor : Plug-In
-
Receiver Number of Audio Channels : 1
-
Receiver Audio I/O : 3.5 mm TRS Male Unbalanced Output // 3.5 mm TRRS Male Unbalanced Output
-
Receiver Frequency Response : 20 Hz to 20 kHz
-
Receiver Word Clock I/O : None
-

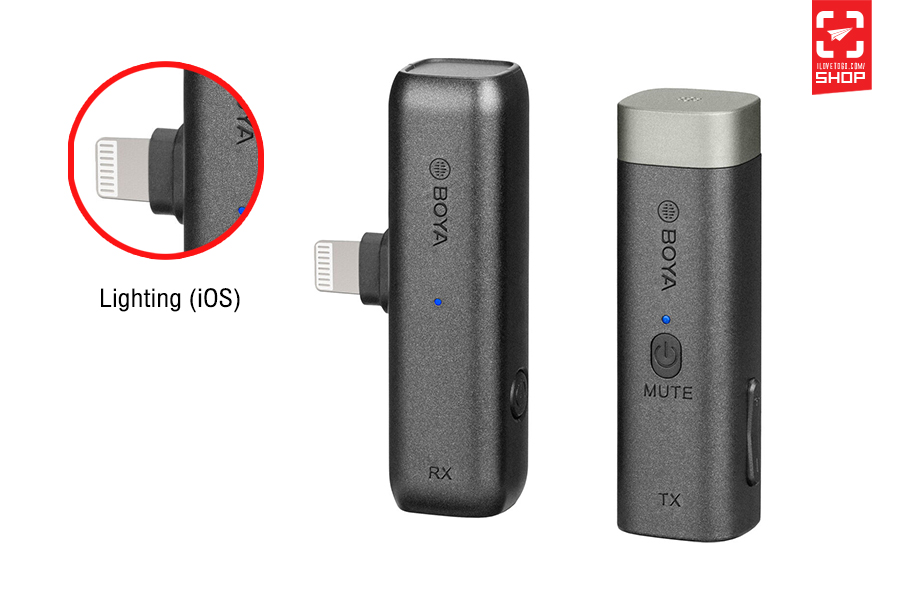

Receiver USB/Lightning Connectivity : Lighting (iOS) // USB-C (Android)
-
Receiver Power Requirements : Battery
-
Receiver Battery Type : 1 x Built-In Rechargeable
-
Receiver Internal Battery Capacity : 100 mAh
-
Receiver Battery Charging Time : 2 Hours
-
Receiver Approx. Battery Life : 8 Hours
-
Receiver Display & Indicators : 1 x LED (Battery Status, Power, Recharging)
-
Receiver Dimensions : 15.6 x 54 x 15.6 mm
-
Receiver Weight : 9.5 g
-

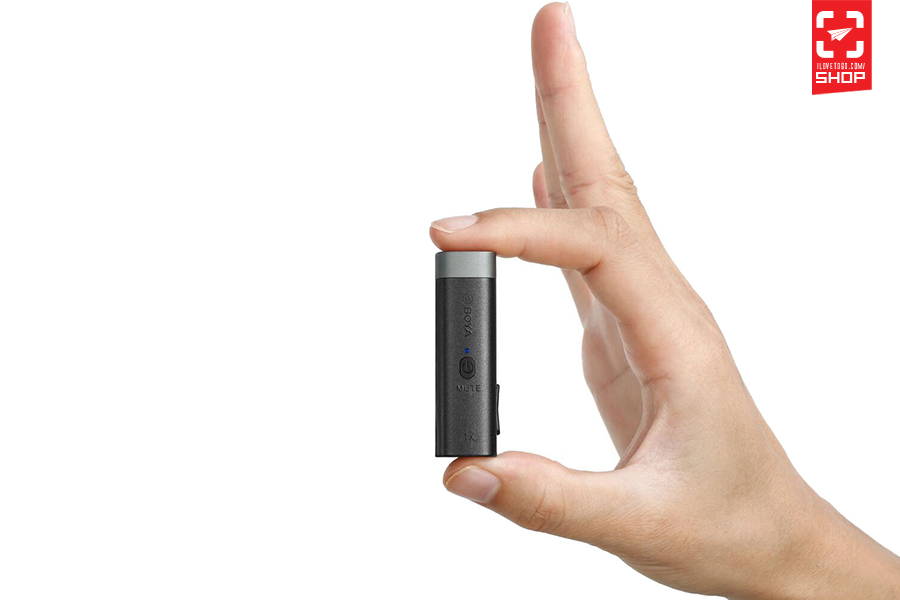

Transmitter Form Factor : Clip-On with Microphone
-
Transmitter RF Output Power : 2.5 mW
-
Transmitter Audio I/O : None
-
Transmitter Muting : Off/On Switch
-
Transmitter Auto-Level Control : No
-
Transmitter Sync Method : Proprietary
-
Transmitter Power Requirements : Battery
-
Transmitter Battery Type : 1 x Built-In Rechargeable
-
Transmitter Internal Battery Capacity : 100 mAh
-
Transmitter Battery Charging Time : 2 Hours
-
Transmitter Approx. Battery Life : 4.5 Hours
-
Transmitter Display & Indicators : 1 x LED (Battery Status, Mute, Recharging)
-
Transmitter Dimensions : 18 x 51.8 x 15.6 mm
-
Transmitter Weight : 10.5 g
-
Microphone Form Factor : Integrated
-
Microphone Sound Field : Mono
-
Microphone SNR : 83 dB
-
Microphone THD : < 0.1%
